    Waterproof Portable Smart IP65 3.5KW 7 KW Ac Ev Charger

    Perfect for home use, this 3.5kW-7kW AC charger offers cost-effective installation using existing wiring. It provides safe, gentle overnight charging to extend battery lifespan. Its compact size and user-friendly operation make Ev ownership simple and convenient.

    Charging Power

    1 hour

    Charging Time

    16KM

    50KM

    Distance

    • 3.5KW

    • 11KW

    Inquire Now
    WhatsApp

    Share To:

    Product Categories

    contact Us

    Product Introduction

    Designed to utilize standard household power, it delivers safe, reliable overnight charging, ideal for topping up daily commutes or smaller EV batteries. Its compact and minimalist design allows for easy installation in garages or outdoors. Users can conveniently monitor charging status via intuitive LED indicators and benefit from robust safety features including over-current, over-voltage, and lightning protection. An affordable and durable choice to ensure your vehicle is fully charged and ready to go every morning.

    Specification

    Structure AppearanceDimension195(H) × 95(W) × 55(D)mm
    User Interface4*LED Indicator light
    Cable length5m standard, 10m or other size customizable
    Weight2.4kg (Including charging gun)
    Electrical Input voltage220V
    SpecificationFrequency45-65Hz
    Power rating3.5KW
    Measurement accuracyGrade 1.0 on-board
    Output voltageAC220V±20%
    Output current16A
    Standby power≤1W
    Interface DesignPower supply interfaceSCHUKO plug
    Safety DesignCharging interfaceGB/T 20234
    Design standardSAE J1772、IEC 20234、GB/T 20234.1、GB/T 20234.2GB/T 18487.1、NB/T 42077

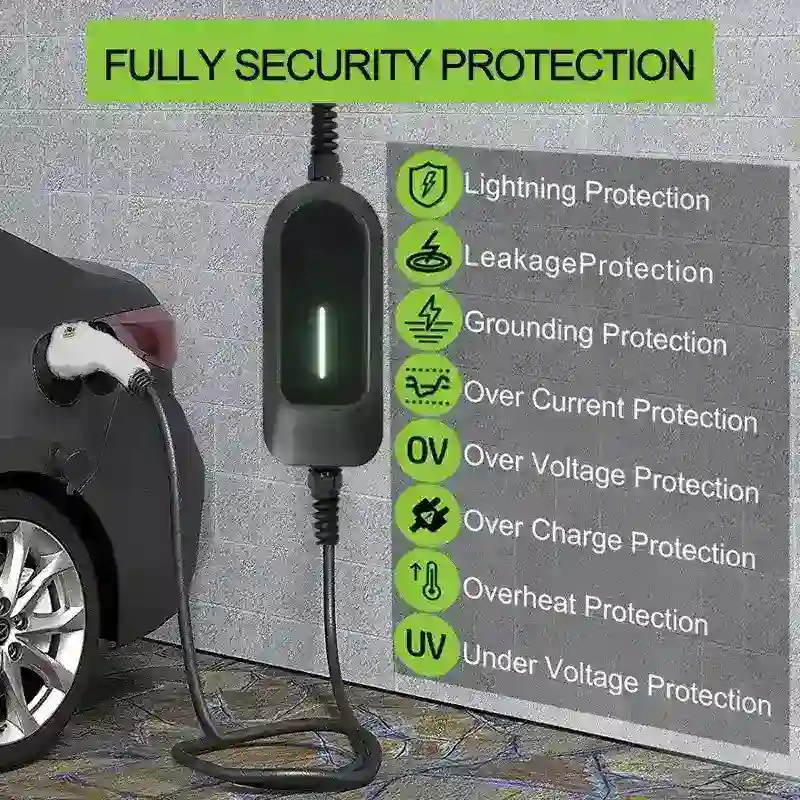

    ProtectionOvervoltage protection,undervoltage protection,overload protection, short circuit protection, grounding protection, type Aleakage protection,llightning/surge protection, reverse connection protection,adhesion detection, over temperature protection
    EMC LevelEMS automotive electronics standards,EMl Class B limit
    Working temperature-40-+65℃
    Working Humidity5%-95% no condensation
    Working altitude≤4000m
    Flame retardant propertiesUL94-V0
    IP grade≥IP65
    Cooling modeNatural cooling
    ApplicableIndoor/Outdoor，No conductive dust, no corrosive gas, no explosive gas, no strong vibration
    Special protectionAnti- Uv design, anti-vehicle rolling design
    MTBF≥100000H
    OptionalPlug temperature controlStandard
    Why Choose Us
    10 years manufacture experienceof new engery ev charger.
    4000 square meters productionworkshop.
    23+ industrial R&D and designteam,structure engineer team.
    4 existing automatic andsemi-automatic production lines
    60+ patent certificates.
    20+test instruments

    What are the advantages of our EV Charger?

    01/ Complete Variety
    AC and DC charging station equipment of national standard, European standard,American standard, and Japanese standard can be used.

    02/ Wide Coverage
    AC piles involving 3.5KW, 7KW, 11KW, 14KW, 22KW, 42KW, 84KW;DC piles: 7KW, 15KW, 20KW, 30kW, 40KW, 60KW to 480KW can be produced;AC-DC integrated charging stations can also be customized according to demand.

    03/ Wide Practicability
    Different pile types can be selected according to different environments anddifferent needs; for example AC piles can be wall-mounted, column-type, andfloor-mounted; DC piles can be selected from portable, wall-mounted, integrated.and split types.

    04/ Intelligent
    Through the intelligent cloud platform, online and offline real-time monitoring ofcharging pile data can be realized through intelligent management of the entirenetwork, intelligent control, intelligent maintenance, and comprehensiveextension of the integration of the Internet of Vehicles system.

    05/ Convenience
    Through the charging software, you can view the idle charging piles, filter thetypes of AC and DC piles, and guide users to charge, which is convenient and fast,and has complete functions. We can provide customized APp services.

    FAQ

    Q1: Can we ask you to print our logo into chargers?   Can the color of the plug and wire be customized according to our requirements?
    A: Yes. We support OEM/ODM production.

    Q2: What is your quality control system?
    A: Complete all incoming material inspection, process inspection, and final inspection;   30 test procedures will be done before the goods leave the factory, and charging test videos will be sent;   products have CE, ROHS, FCC, UL, KC certification.

    Q3: How do I select the type of charging stations?
    A: If you need to charge your EV at anytime and anywhere, kindly please purchase the power adjustable portable charger, which can be placed in your car boot.    If you have personal parking space,we suggest purchase a wallbox or floor mounted charging station.

    Q4: What services can we provide?
    A: 1. Free on-site touring and introduction of our factory.
    2.We provide process design and validation for free.
    3.We can guarantee on-time delivery of samples and goods.
    4.Our products passed CE,ISO test. Accept third-party testing.
    5.Close follow-up of all orders by special person and keep customers informed timely.
