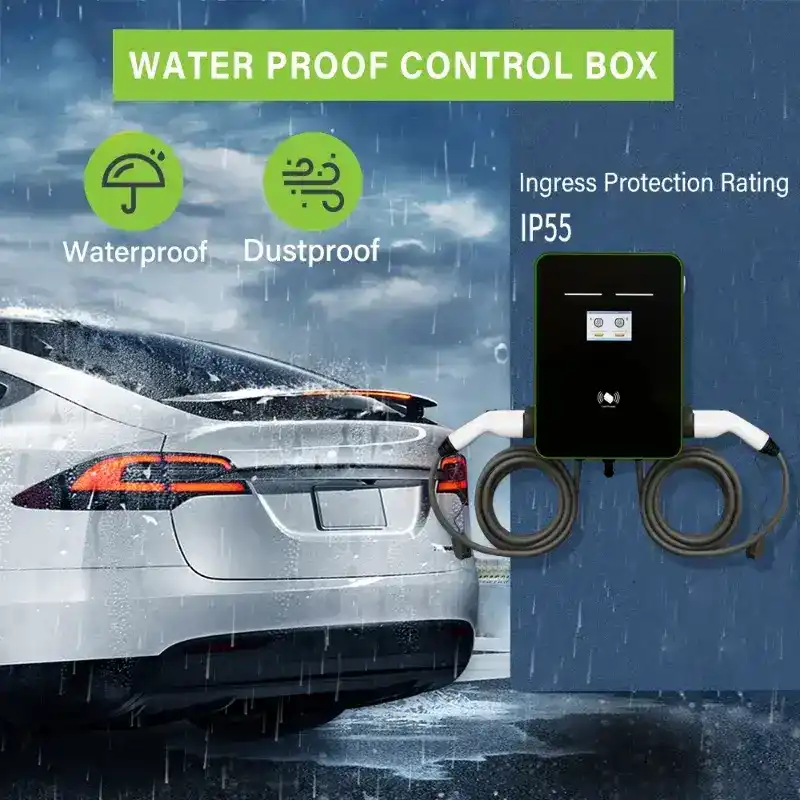

    Wall Mounted 7kw 11kw 22kw Ocpp RFID Dual Gun AC EV Charger

    Wall-mounted 7 kW 11 kW 22 kW dual-gun AC EV charger, compliant with OCPP protocol for seamless remote management. RFID authentication ensures secure access, supporting multiple users. Compact wall-mount design saves space, ideal for residential, workplace & public parking.

    Charging Power

    1 hour

    Charging Time

    32KM

    50KM

    100KM

    Distance

    • 7KW

    • 11KW

    • 22KW

    Inquire Now
    WhatsApp

    Share To:

    Product Categories

    contact Us

    Product Introduction

    This dual-port charging station delivers flexible power from 7kW to 22kW, efficiently charging two vehicles simultaneously or one at full speed. It features advanced OCPP protocol for seamless integration into smart charging networks and management software. Secure user authentication is handled via RFID, allowing for controlled access and payment systems. Its robust, wall-mounted design is ideal for a wide range of commercial, fleet, and public applications, providing a future-proof and reliable charging solution.

    Specification

    Product SeriesCommercial-DOUBLE GUNCommercial-DOUBLE SOCKET
    Charging interfaceIEC 61851、GB/T 20234、GB/T 18487-
    2015, GB/T 20234-2015    		IEC 61851
    Input Voltage Range220VA ± 20% (1-phase) / 380VA ± 20%(3-phase)
    Output Voltage Range220VA ± 20% (1-phase) / 380VA ± 20%(3-phase)
    Rated output current16A/32A
    Rated power7kW+7KW / 11KW+11KW / 22KW+22KW
    Working Frequency45/65 Hz
    Networking method4G/WIFI/LAN
    BluetoothNA
    Control modeOCPP1.6 J (QR code / RFID)
    IP grade≥ IP55
    Working Temperature-40℃～ +60℃
    Working Humidity5%-95% Non-condensing
    Special ProtectionUV resistance
    Working altitude≤ 2000m
    Operating instructionsOn-screen display / Buzzer
    Status indicationOn-screen display /LED breathing light
    Application ScenarioOutdoor indoor parking and charging
    Weight<46.3kg<40.7kg
    Dimension1500(H)mm x 400(W)mm x 230(D)mm

    Why Choose Us
    10 years manufacture experienceof new engery ev charger.
    4000 square meters productionworkshop.
    23+ industrial R&D and designteam,structure engineer team.
    4 existing automatic andsemi-automatic production lines
    60+ patent certificates.
    20+test instruments

    What are the advantages of our EV Charger?

    01/ Complete Variety
    AC and DC charging station equipment of national standard, European standard,American standard, and Japanese standard can be used.

    02/ Wide Coverage
    AC piles involving 3.5KW, 7KW, 11KW, 14KW, 22KW, 42KW, 84KW;DC piles: 7KW, 15KW, 20KW, 30kW, 40KW, 60KW to 480KW can be produced;AC-DC integrated charging stations can also be customized according to demand.

    03/ Wide Practicability
    Different pile types can be selected according to different environments anddifferent needs; for example AC piles can be wall-mounted, column-type, andfloor-mounted; DC piles can be selected from portable, wall-mounted, integrated.and split types.

    04/ Intelligent
    Through the intelligent cloud platform, online and offline real-time monitoring ofcharging pile data can be realized through intelligent management of the entirenetwork, intelligent control, intelligent maintenance, and comprehensiveextension of the integration of the Internet of Vehicles system.

    05/ Convenience
    Through the charging software, you can view the idle charging piles, filter thetypes of AC and DC piles, and guide users to charge, which is convenient and fast,and has complete functions. We can provide customized APp services.

    FAQ

    Q1: Can we ask you to print our logo into chargers?   Can the color of the plug and wire be customized according to our requirements?
    A: Yes. We support OEM/ODM production.

    Q2: What is your quality control system?
    A: Complete all incoming material inspection, process inspection, and final inspection;   30 test procedures will be done before the goods leave the factory, and charging test videos will be sent;   products have CE, ROHS, FCC, UL, KC certification.

    Q3: How do I select the type of charging stations?
    A: If you need to charge your EV at anytime and anywhere, kindly please purchase the power adjustable portable charger, which can be placed in your car boot.    If you have personal parking space,we suggest purchase a wallbox or floor mounted charging station.

    Q4: What services can we provide?
    A: 1. Free on-site touring and introduction of our factory.
    2.We provide process design and validation for free.
    3.We can guarantee on-time delivery of samples and goods.
    4.Our products passed CE,ISO test. Accept third-party testing.
    5.Close follow-up of all orders by special person and keep customers informed timely.
