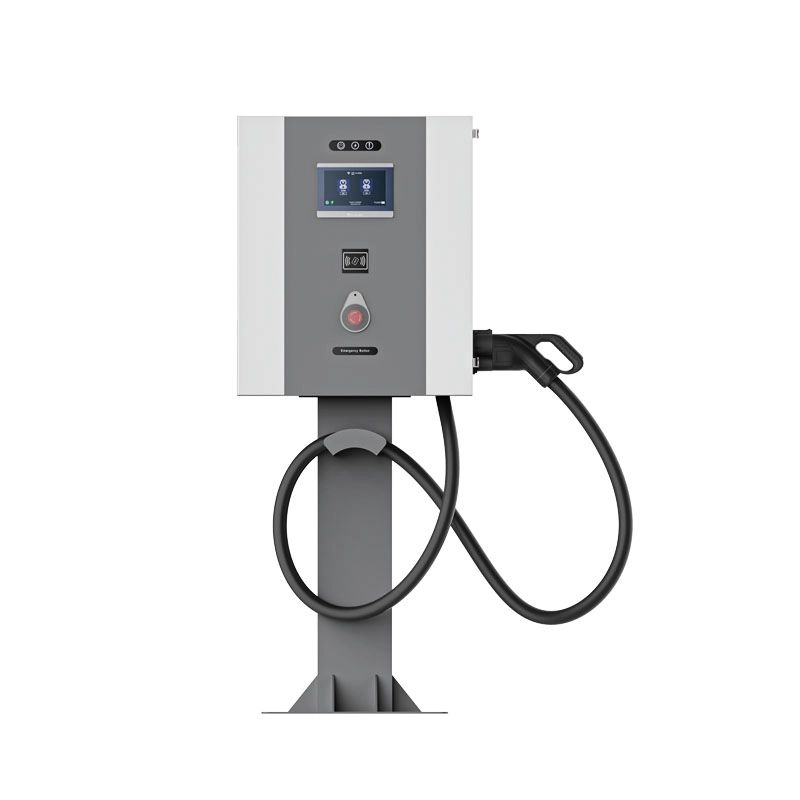

    Floor Mounted 30kw 40kw OCPP1.6 Dc Fast Charging Station

    The 30kW and 40kW models offer rapid charging, an intuitive user interface, and robust connectivity. Their floor-standing design ensures easy deployment, providing a reliable and efficient EV charging solution.

    Charging Power

    1 hour

    Charging Time

    137KM

    183KM

    Distance

    • 30KW

    • 40KW

    Inquire Now
    WhatsApp

    Share To:

    Product Categories

    contact Us

    Product Introduction

    These 30kW and 40kW floor-standing DC fast chargers offer a powerful and practical solution for accelerating the adoption of electric vehicles. Their compact, all-in-one design houses all necessary components, making installation straightforward and cost-effective for a wide range of locations, including public parking lots, retail centers, and fleet operations.

    This robust and reliable charging equipment is an ideal investment for businesses looking to build or expand their EV infrastructure, meeting the growing demand for convenient and efficient public charging.

    Specification

    Input400VAC (3P+N+PE) || 50/60Hz
    Output Voltage200 – 1000VDC
    Output currentCCS2：100A
    ConnectorsCCS2
    Efficiency≥94% at nominal output power
    Power factor＞0.98
    Operating temperature-30°C to 55°C
    Altitude< 2000m
    Working || Storage Humidity≤ 95% RH || ≤ 99% RH (Non-condensing)
    Display7’’ LCD with touch screen
    RFID systemISO/IEC 14443A/B
    Dimensions (L x D x H)630mm x 700mm x 1500mm
    Ingress ProtectionIP54 || IK10
    Power Electronics CoolingAir Cooled
    Weight85kg
    Insulation (input – output)＞2.5kV
    Regulatory ComplianceCE || EMC: EN 61000-6-1:2007, EN 61000-6-3:2007/A1:2011/AC:2012
    Charging Protocol StandardsMode 4 – IEC-61851, ISO-15118, DIN 70121Mode 4 – CHAdeMO 0.9, 1.0Mode 4 – GB/T 18487 2015, GB/T 20234 2015, GB/T 27930 2015
    Length of charging cable5m
    Communication protocolOCPP 1.6J
    Access ControlRFID: ISO/IEC 14443A/B || Credit Card Reader (Optional)
    CommunicationEthernet – Standard || 3G/4G Modem (Optional)
    Electrical Safety: GFCIRCD 30 mA Type A
    Electrical Safety: Surge Protection20 kA
    Electrical Safety GeneralOver Voltage, Under Voltage, Over Current, Missing Ground
    Electrical Safety: Output ShortOutput power disabled when output is short circuited
    Electrical Safety TemperatureTemperature Sensors @ Charge Coupler and Power Electronics
    Emergency StopEmergency Stop Button Disables Output Power
    Why Choose Us
    10 years manufacture experienceof new engery ev charger.
    4000 square meters productionworkshop.
    23+ industrial R&D and designteam,structure engineer team.
    4 existing automatic andsemi-automatic production lines
    60+ patent certificates.
    20+test instruments

    What are the advantages of our EV Charger?

    01/ Complete Variety
    AC and DC charging station equipment of national standard, European standard,American standard, and Japanese standard can be used.

    02/ Wide Coverage
    AC piles involving 3.5KW, 7KW, 11KW, 14KW, 22KW, 42KW, 84KW;DC piles: 7KW, 15KW, 20KW, 30kW, 40KW, 60KW to 480KW can be produced;AC-DC integrated charging stations can also be customized according to demand.

    03/ Wide Practicability
    Different pile types can be selected according to different environments anddifferent needs; for example AC piles can be wall-mounted, column-type, andfloor-mounted; DC piles can be selected from portable, wall-mounted, integrated.and split types.

    04/ Intelligent
    Through the intelligent cloud platform, online and offline real-time monitoring ofcharging pile data can be realized through intelligent management of the entirenetwork, intelligent control, intelligent maintenance, and comprehensiveextension of the integration of the Internet of Vehicles system.

    05/ Convenience
    Through the charging software, you can view the idle charging piles, filter thetypes of AC and DC piles, and guide users to charge, which is convenient and fast,and has complete functions. We can provide customized APp services.

    FAQ

    Q1: Can we ask you to print our logo into chargers?   Can the color of the plug and wire be customized according to our requirements?
    A: Yes. We support OEM/ODM production.

    Q2: What is your quality control system?
    A: Complete all incoming material inspection, process inspection, and final inspection;   30 test procedures will be done before the goods leave the factory, and charging test videos will be sent;   products have CE, ROHS, FCC, UL, KC certification.

    Q3: How do I select the type of charging stations?
    A: If you need to charge your EV at anytime and anywhere, kindly please purchase the power adjustable portable charger, which can be placed in your car boot.    If you have personal parking space,we suggest purchase a wallbox or floor mounted charging station.

    Q4: What services can we provide?
    A: 1. Free on-site touring and introduction of our factory.
    2.We provide process design and validation for free.
    3.We can guarantee on-time delivery of samples and goods.
    4.Our products passed CE,ISO test. Accept third-party testing.
    5.Close follow-up of all orders by special person and keep customers informed timely.
